SIDEVIEW LED strips MASTER

LED strips MASTER SIDE are special version of LED strips, suitable for bending in the other axis compared to axis of light. Its suitability is found in sign making, special architectural curved lighting lines, or objects requiring non-standard curves bending. Its spectral characteristics are compatible with our other LED strips, so you can easily mix same colour from various series to gain the same colour everywhere. Its medium power makes it very suitable for most applications. LED strip is packaged in quantity 10m per roll.

Sideview LED strip real example showing how to bend each flap with LED to create curved lighting

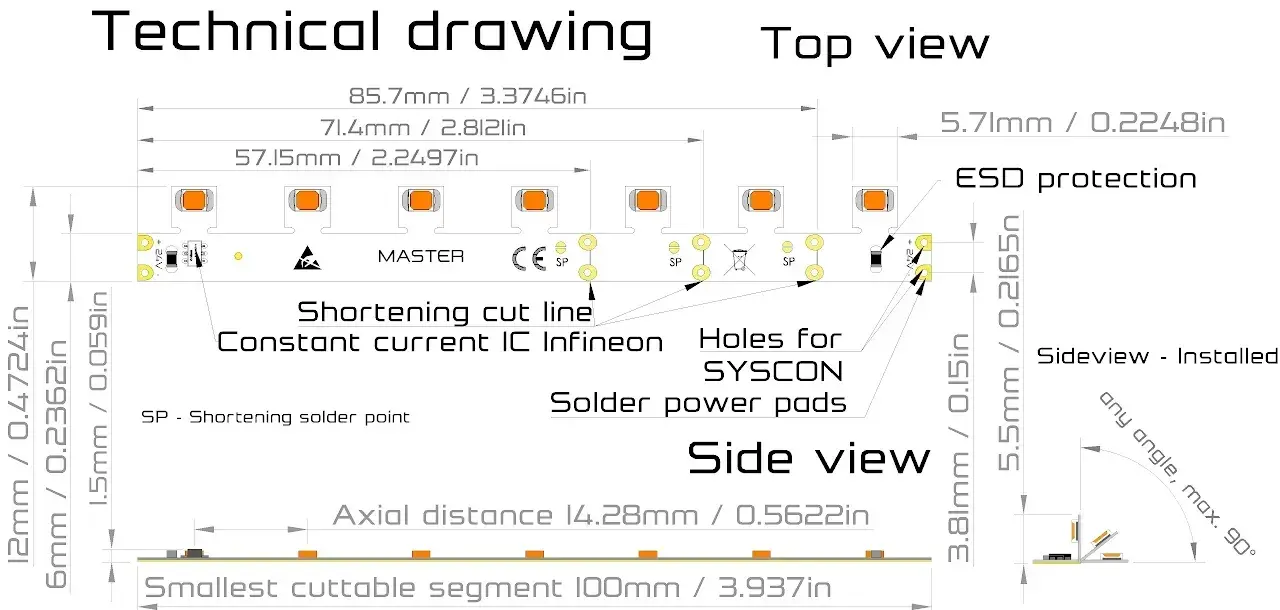

Sideview LED strip Technical drawing segemnt view

Spectral characteristics valid for all OSRAM LEDs included with suffix code : -W8xx




Files to download

Full Catalogue to download : HERE

3D models, DXF files, EULUM data
