MASTER General Advantages

During last 10 years we collected vast amount of knowledge, so we developed our advanced portfolio of LED strips with many great details, resulting in many features and advantages, few of them are mentioned bellow :


5-years warranty

Extended 5-years warranty ....and for everybody! Only using quality LEDs, sophisticated solutions, complex testing and well organised production is the key to stand behind our quality products.

5-years warranty as standard for all our MASTER products

Electrical properties

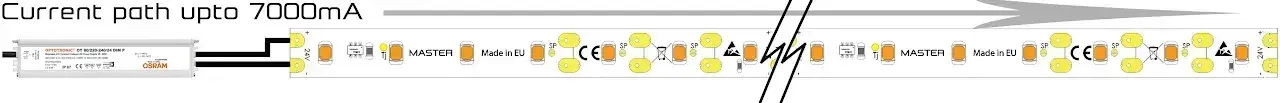

MASTER LED strips Current path explained

Massive current path of upto 7000mA

Special Low-drop Voltage system (High purity copper path optimized for high current density)

Constant current drivers on board allowing MASTER LED strips to connect to 24VDC power systems, each segment with individual over-current protection with NTC thermaly negative coeficient.

ESD safe

ESD protection - most of our products have assembled a extra ESD-protective device, to enhance quality in case of ESD (electro static discharge) ESD protective device onboard enhancing durability in case of ESD discharge

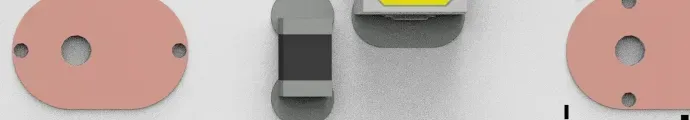

ESD protection on MASTER LED strips providing extra protection while handling

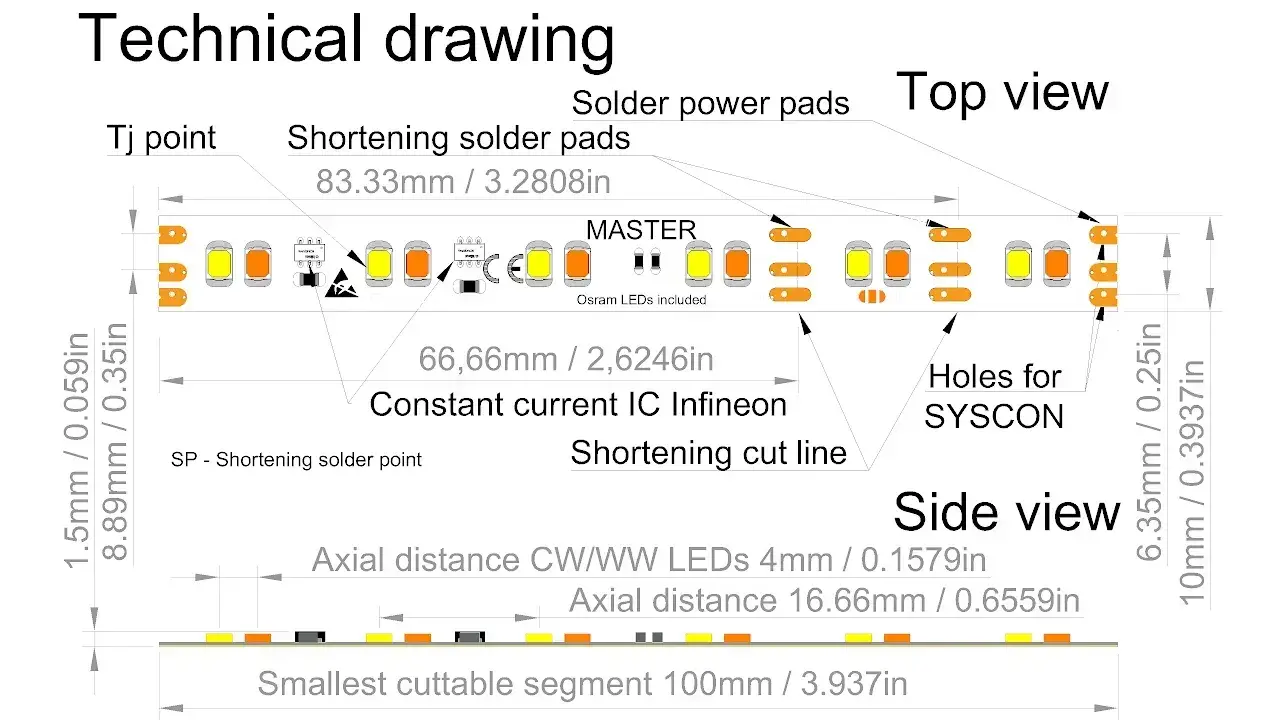

Technical drawing of MASTER LED strip showing all technical advantages

Portfolio advantages

  • power solutions from 1.8W upto 28W per meter (300-4000Lm/m) We can deliver even higher Lm output, but normally it is not neccessary.

  • more than 43 different colour options for almost each design in our portfolio resulting in more than 1500 combinations

  • More than 16 different product designs, each specially developed with focus to solve certain problem (high uniformity, low voltage drop, high current path, great heat dissipation, high temperature enviroment, etc.

  • LED density from 28x LED/m upto 248x LED/m
    See ALL FEATURES

Infinite colour and spectral properties

  • possibility to deliver CRI of upto 97 in almost any design, with options for LEDs with Award winning spectral properties (Seoul Sunlike LEDs).

  • colour/spectral comaptibility in whole portfolio, allowing you to mix different designs (power, density, type, etc) in one installation

  • More than 42 different colours, and spectral properties to choose from. Colours

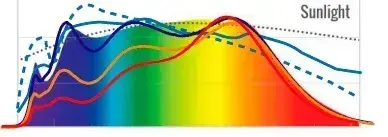

Spectrum properties of various light sources

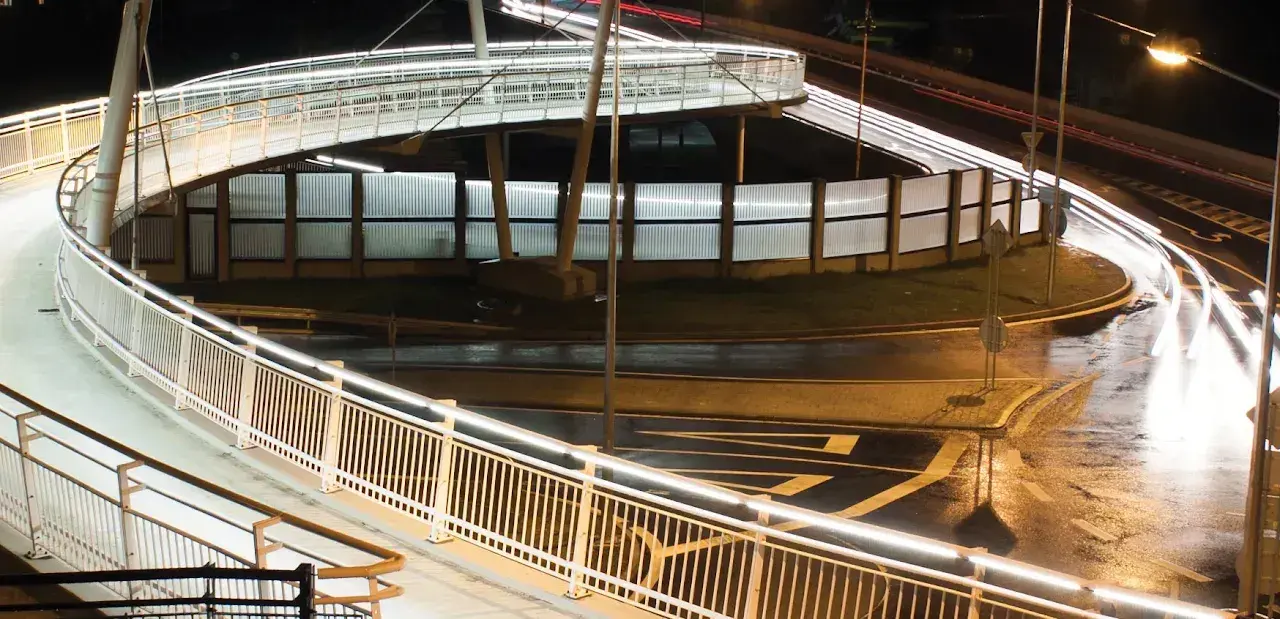

Bridge lighting with MASTER LED strips LONGRUN ideal for very long lines powered from single cable feed

Incredibly long

  • Possibility to install LED strips in incredibly long lines without visible brightness drop along the line . Only with our MASTER products it is easy to install 140m of linear light from single power feed! (certain models only)

  • Constant current drivers on board are actively regulating current through each LED on LED strips, thus exact brightness even when Voltage drop occurs is not a problem for us.

    Bridge on the picture left was powered from 4 power feeds (total of 232m long LED lines) See product

We aren't finished yet.

Our limits are much more deeper : for example : parameter "Maximum length (m)" is defined as result of "minimum Voltage (Umin) and Maximum allowed current through FCB" . These informations are measured for U(typ). In case there is still one of the limits not met, we have measured the LED strips for enhanced power voltage (Umax) which will allow you to meet the other limit too and install the products more effectively ( longer LED strips distance, longer cables, etc)

Labs and tests

  • We have tested our product portfolio in Official Osram Labs (OSRAM PASS service ) available upon request LDT, IES, LM80,LM79, optical simulation, Lifetime predictions, etc.....

  • Apart that, we continuously run our internal tests focused on : salt enviroment tests, high temperature tests (80 and 105C)

Large Integrating sphere with person inside it showing Laboratory testing and measuring of light sources

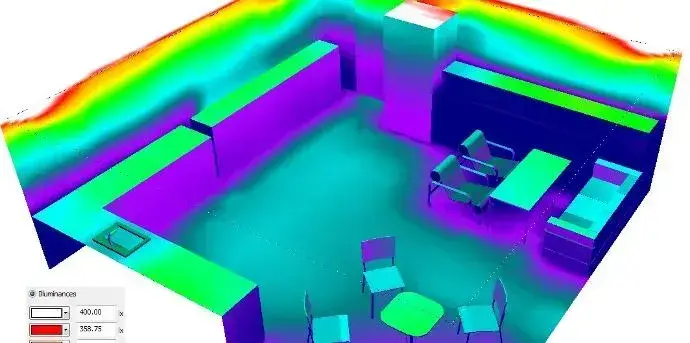

Dialux 3D light simulation rendered in false colours. Interior lighting

Drawings, plugins, test reports

  • Light calculation plugins free to download (LDT, IES)

  • 3D models (OBJ, STEP)

  • precize mechanical drawings (DXF, DWG)

  • High temperature reliability tests

Want to know more or want to order some samples? ? Contact us! Or want to check Our Portfolio
